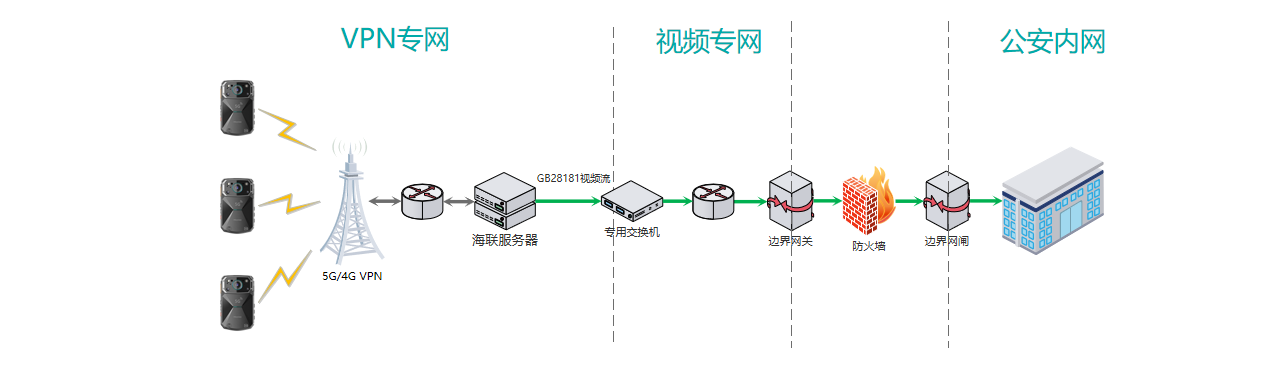

Audio and video data transmission scheme for public security intranet

1. The operator establishes a VPN dedicated wireless network channel for wireless transmission of mobile law enforcement terminals.

2. Deploy the Hailian platform (streaming/signaling services, etc.) in the VPN dedicated network to achieve real-time feedback of mobile law enforcement terminal positioning, video and other data.

3. Establish a one-way video stream transmission channel between the VPN private network and the public security video private network using a dedicated switch.

4. The Hailian server uses a forwarding service to convert the video uploaded by law enforcement terminals into a standard GB28181 video stream, which is then transmitted to the video private network through a dedicated switch. The video system within the private network can store and apply related business applications.

5. The video private network transmits real-time audio and video streams to the public security intranet centralized management platform through cascading security gateways, thereby achieving unified application of the intranet centralized management platform

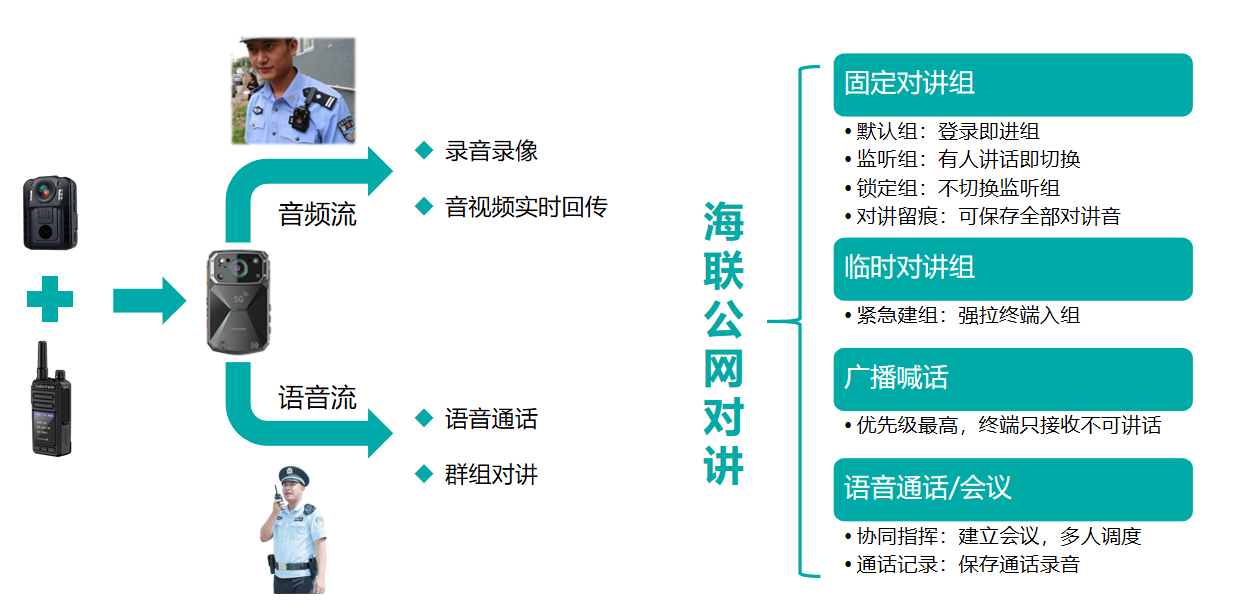

   Hailian public network intercom voice dual stream technology

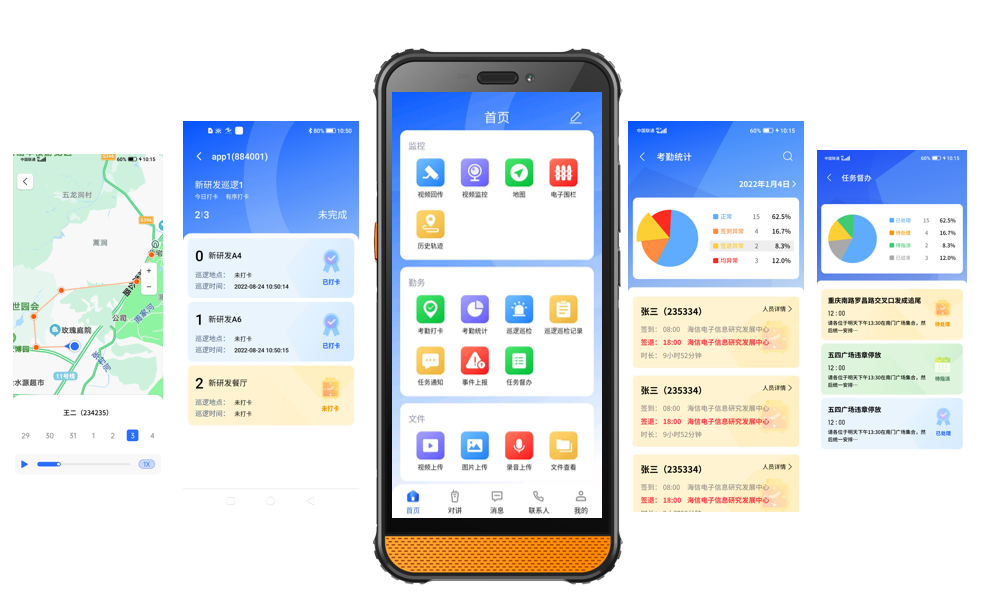

   Mobile Command Application Software



• Real time viewing of video footage from 4-channel recorders

• Can view the deployment of surrounding police forces

• Voice intercom, initiate remote command

• Access historical video records

• Can check the attendance data of terminal accounts

• Can inspect task supervision, attendance records, and patrol inspections

• Support multiple mainstream Android phones in the market




  Inspection and patrol function

Inspection

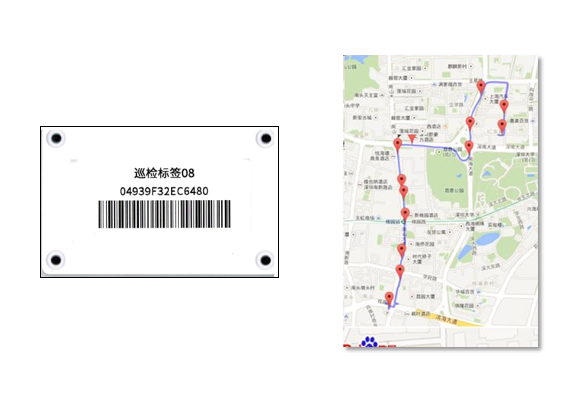

• Patrol tag cards, frontline personnel can report tag information by swiping NFC cards through smart terminals.

• Inspection supports various scenarios such as disorderly inspection, orderly inspection, and timely inspection.

• 巡检标签卡 采用 IP65工艺，有定位孔，自带3M双面胶，室外可用。

• The inspection clock in function is suitable for inspection application scenarios where indoor GPS signals are weak and clock in by floor.




patrol

• Set patrol points on the map, and frontline personnel can clock in and report upon arrival at the patrol points.

•


  Patrol supports various scenarios such as disorderly patrol, orderly patrol, and on-time patrol.

  Suitable for patrol application scenarios where outdoor check-in points are far apart, such as grasslands, forest farms, etc.

• Patrol points allow for accuracy errors, therefore each patrol point has an accuracy range.

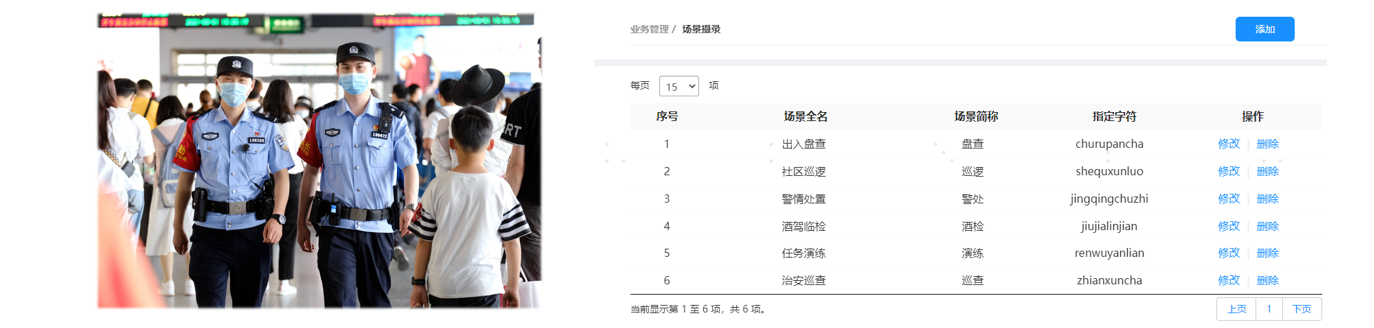

Scene recording function

• The law enforcement recorder can provide users with customized recording of specific work content according to the scene,The saved video file name contains specific characters to achieve video file taggingIt is convenient for quick video retrospective analysis.

• Scene recording is suitable for video analysis scenarios, when it is necessary to target different law enforcement activities of frontline police officersWhen conducting analysis and backtracking, specific video file names can be used for classification. In executionPlays a significant role in the association of legal cases and the standardization of law enforcement inspections.

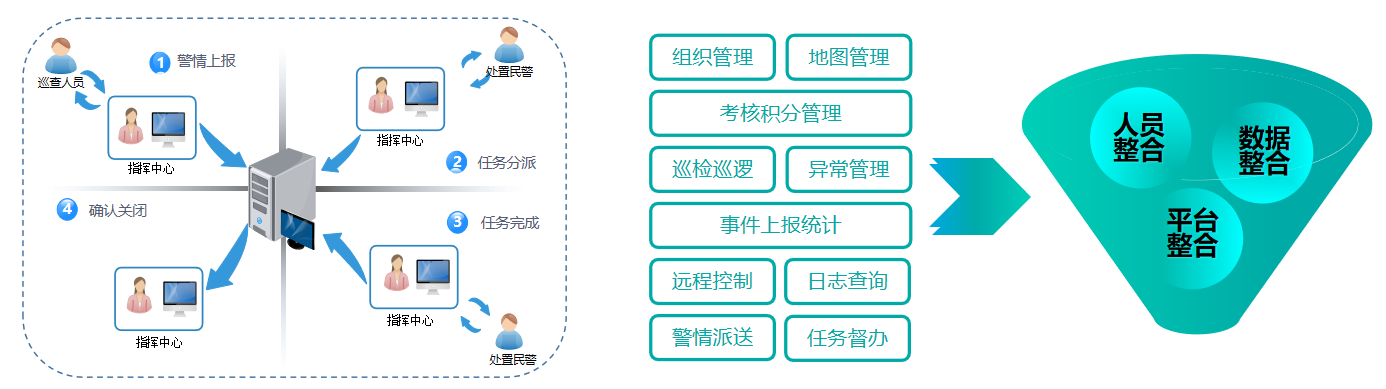

Police dispatch and task supervision

                                           Task disposal loop                                                                         Collaborative management                                                           Deep integration
